HKS COMPLETE ENGINE RB26 3.0L S3 V-CAM Nissan GTR R32

HKS COMPLETE ENGINE RB26 3.0L S3 V-CAM Nissan GTR R32

by HKS
SKU HKS23011-AN024
$9,999.00 - $9,999.00
$9,999.00
$9,999.00 - $9,999.00
$9,999.00
  Lease to own   Pay as low as   $/week

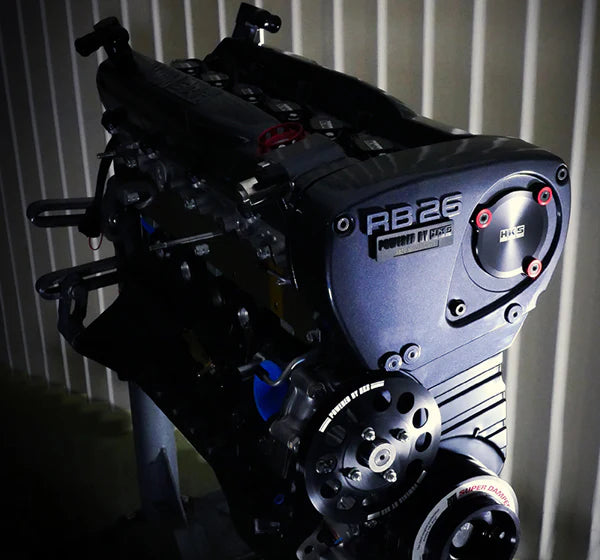

HKS COMPLETE ENGINE RB26 3.0L S3 V-CAM Nissan GTR R34

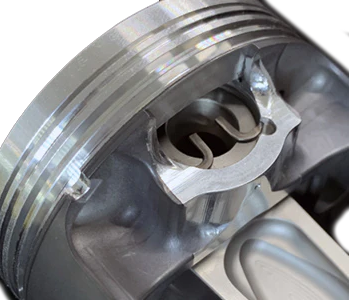

The flagship of the RB26 Complete Engine lineup, this pinnacle model features a newly developed 2-piece piston design that delivers increased stroke and extended connecting rod length—all while retaining the original block height.

Recommended engine oil is HKS Racing Pro 10W50

The exclusive 3.0L crank is machined from high-end race grade nitride steel that is ion plasma treated to increase surface strength and toughness.
In preparation for high torque, dedicated I-beam connecting rods with 36%
increase buckling strength and a 22mm thicker piston pin were adopted.
Various design changes were made to countermeasure against heat generated during higher output, such as, changes to valve guide and seat materials, adoption of sodium-filled EX valves, and pistons with cooling channels

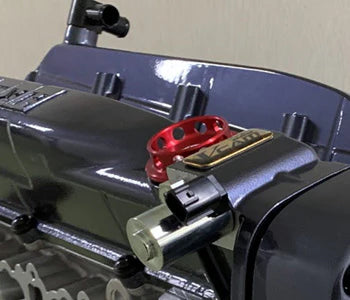

Dedicated 36-tooth crank angle sensor and crank angle sensor for V-cam improve signal accuracy in the high-RPM range.
Camshaft
IN：HKS V-CAM STEP Pro 264°/ LIFT 10mm
EX：HKS STEP 2 280°/ LIFT 10mm
Accessories
  • Blow-by Separator IN/EX HKS Enhanced Product
  • Cam Cover HKS RB30 Exclusive (EX）
  • Cam Pulley HKS SLIDE CAM-PULLEY (EX)
  • Timing Belt HKS Fine Tune Timing Belt
  • Spring Retainer HKS Titanium
  • Valve IN: Stock EX:1mm Sodium filled-Inconel
  • Valve Spring HKS Enhanced Product
  • Stem Seal HKS Enhanced Product

Head Modifications

  • Combustion Chamber: CNC Machined (with retained Squish area),
  • Seat: Beryllium / Guide: Phosphor Bronze,
  • Port: Step removed and polished,
  • Cam Clearance: CNC Machined, Water Jacket: Modifications for improved water flow.
  • Head Gasket HKS Grommet Super Cooling Type (t=1.2)
  • Head Bolt HKS Enhanced Bolt

Block (24U) Modifications

  • Block deck Resurfacing (Parallel to the crankshaft),
  • Waterhole Machining, Head bolt hole chamfering (to prevent cracking),
  • Deburring lower end of cylinder、Boring
  • Oil Pump HKS Enhanced Product
  • Piston HKS 2-piece machined
  • Conrod HKS I-Beam Center Distance: 127.5mm
  • Crankshaft HKS Billet Full Counter (Ion plasma treated nitriding steel)
  • Main Bearing ACL
  • Conrod Bearing ACL
  • Crank Angle Sensor 36-2 tooth direct crank
  • Ignition system HKS SUPER FIRE RACING COIL PRO
  • Crank Damper ATI 1000PS Specification
  • W/P Pulley：D124(ATI)
  • Ribbed Belt：4PK850,4PK910,4PK925
  • Covers Baked Finish
